**Product Specifications:**

**Brand:** HUAWEI

**Series:** S1730S-L/S, S5735S-L/S/H

**Features:** Plug and Play, Web Management, Easy Management, SVF Support, eSight Network Management System Support, Intelligent Upgrade

**Switching Capacity:** 1.6Gbps - 3.36Tbps

**Forwarding Rate:** 1.19Mpps - 126Mpps

**Port Types:** 10/100/1000Base-T Ethernet Ports, Gigabit SFP Ports

**Power Supply:** Built-in AC Power Supply, Support for Dual Hot-swappable Power Supplies

**Heat Dissipation:** Fanless Design, Natural Cooling/Fan Cooling, Intelligent Speed Adjustment

**Application Scenarios:** SOHO, Campus, Hotel, Enterprise, Surveillance Networks

**Security Features:** MAC and IP Binding, Syslog, Port and MAC Address Filtering

**Compatibility:** Compatible with Various Devices such as Computers, Printers, IP Cameras, Smart TVs, Gaming Consoles

**Energy Efficiency:** Low Power Consumption, Sleep Mode, Fanless Design

**Lightning Protection:** ±6kV to ±10kV Common Mode Lightning Protection

**Installation:** Rack-mountable 1U Design

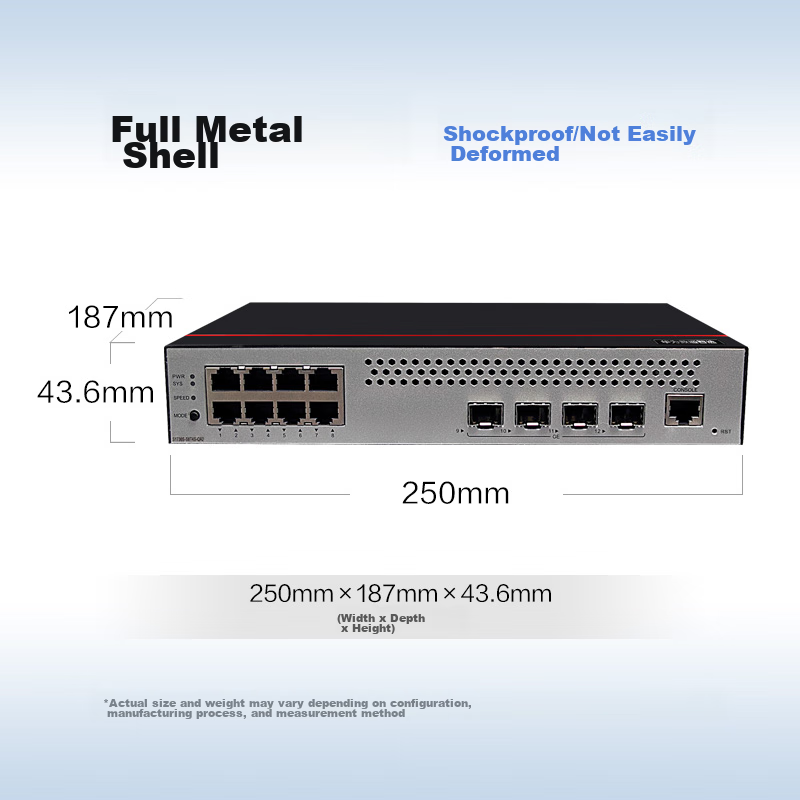

**Dimensions:** 250mm Width x 187mm Depth x 43.6mm Height

**Business Features:** VLAN Support, Port Bridging, Jumbo Frame Support, STP/RSTP/MSTP Support, QoS, Routing Features, Device Management Features

**Model:** S1730S-S8T4S-QA2

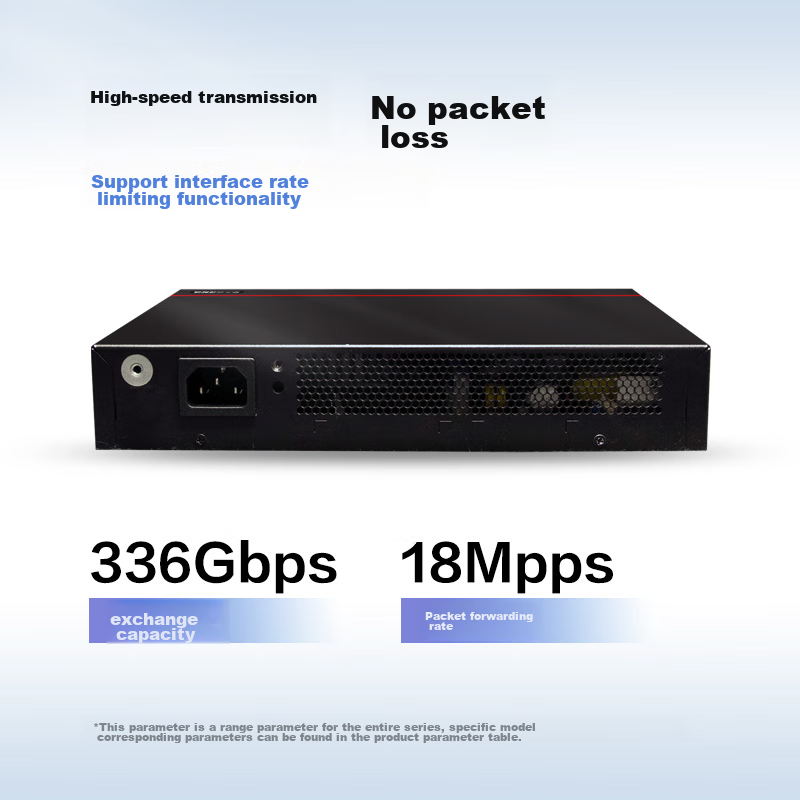

**Switching Capacity:** 336Gbps

**Forwarding Rate:** 18Mpps

**Ports:** 8 x 10/100/1000Base-T Ethernet Ports, 4 x Gigabit SFP Ports

**Power Supply:** Built-in AC Power Supply

**Dimensions:** 250mm x 187mm x 43.6mm (1U)

**Power Consumption:** 14.6W

**Operating Temperature:** -5°C to +45°C

**Storage Temperature:** -40°C to +70°C

**Humidity:** 5% to 95% (Non-condensing)

**Lightning Protection:** ±10kV

**Business Features:**

VLAN Support

Port Security

STP/RSTP/MSTP Support

QoS

Routing Features

Device Management Features
