**Product Specifications:**

**Brand:** HIKVISION

**Model:** DS-7808N-F1/8P

**Features:**

- High-definition output

- Intelligent playback

- High configuration

- 24-hour monitoring

- H.265 decoding

- Mobile remote viewing

- All-day recording

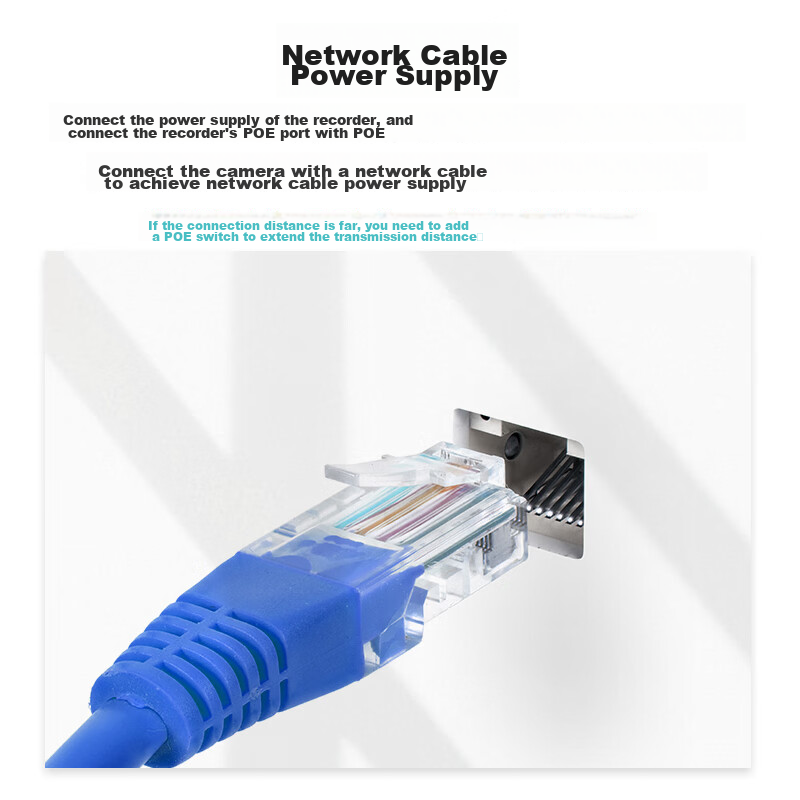

**Power Supply:** Ethernet cable

**Video Output:**

- HDMI and VGA simultaneous output

- Resolution up to 1920*1080P

**Storage Allocation:**

- Customizable storage allocation for different channels

**Easy Configuration:**

- Supports IPV6/UPnP/NTP/SADP/DHCP

**Recording:**

- Continuous loop recording

- Supports 24/7 uninterrupted recording

**Remote Viewing:**

- Mobile app for remote monitoring

**Product Parameters:**

- Video Input Channels: 8

- Network Input Bandwidth: 60Mbps

- Network Output Bandwidth: 60Mbps

- Recording Resolutions: 4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

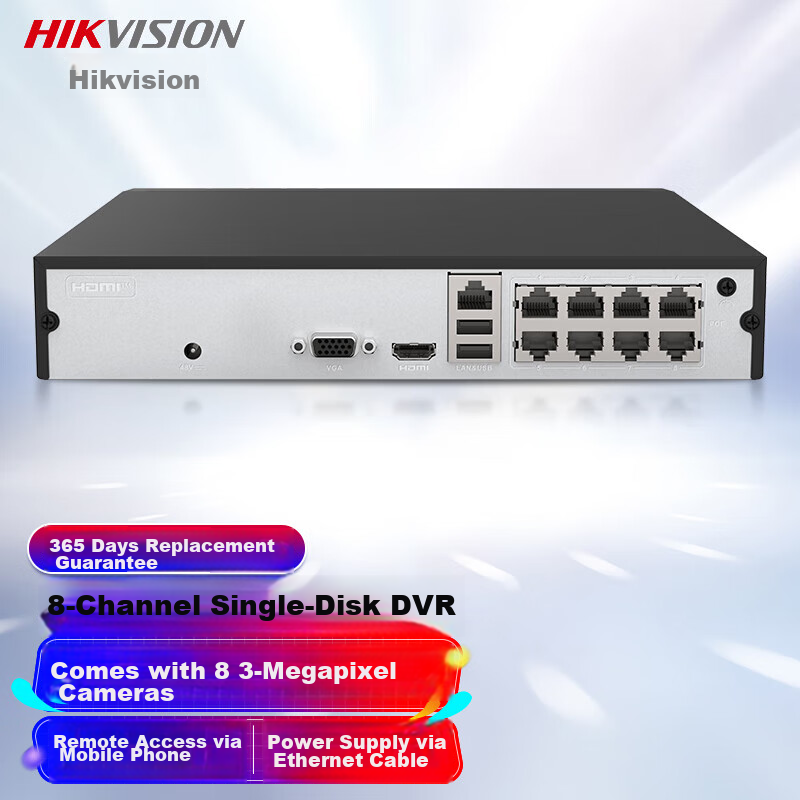

- Video Outputs: 1 HDMI, 1 VGA

- Video Decoding Formats: H.265, Smart265, H.264, Smart264

- Decoding Capability: 4 channels of 1080P synchronous playback

- Disk Slots: 1 SATA interface

- Single Disk Capacity: Supports up to 6TB

- Recording Modes: Manual, Scheduled, Event-based, Motion Detection, Alarm

- Playback Modes: Instant, Regular, Event, Tag, External File

- Backup Modes: Regular, Event

- Network Protocols: IPv6, UPnP, NTP, SADP, DHCP

- Network Interface: 1 RJ45 10M/100M adaptive Ethernet port

- USB Interfaces: 2 USB 2.0 (rear)

- POE Interfaces: 8 RJ45 10M/100M adaptive Ethernet ports

- POE Standard: IEEE 802.3af/at

- POE Output Power: ≤75W

- Power Supply: DC 48V

- Power Specifications: DC48V 90W (external adapter)

- Power Consumption (excluding hard drive): ≤10W

- Operating Temperature: -10°C to +55°C

- Operating Humidity: 10% to 90%

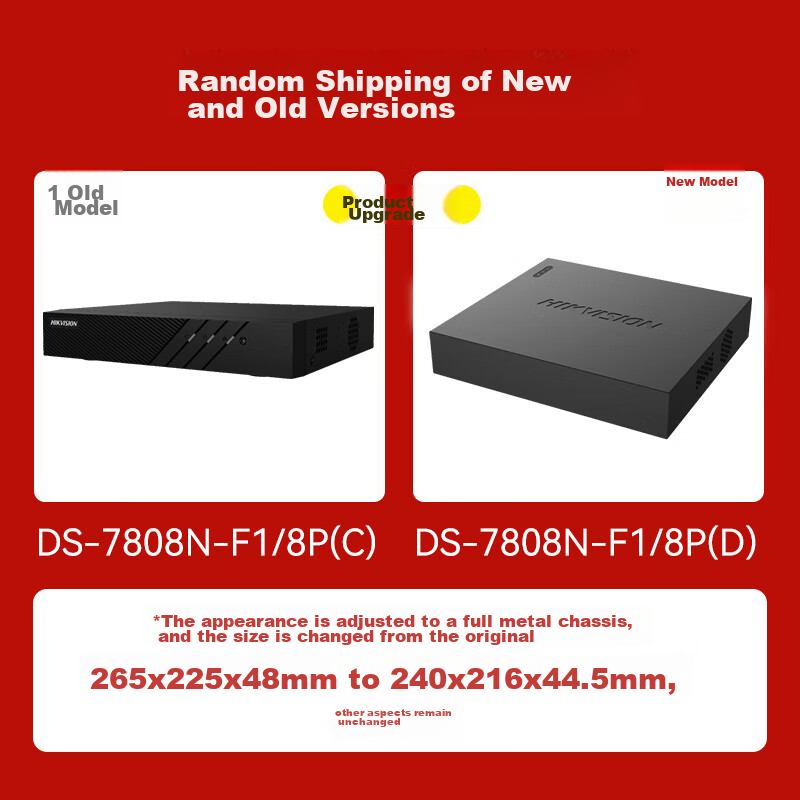

- Chassis: 1U 260 chassis

- Dimensions: 265mm (W) x 225mm (D) x 48mm (H)

- Weight (excluding hard drive): ≤1kg

**Infrared Remote Control:** Not supported
