**Product Specifications:**

**Brand:**

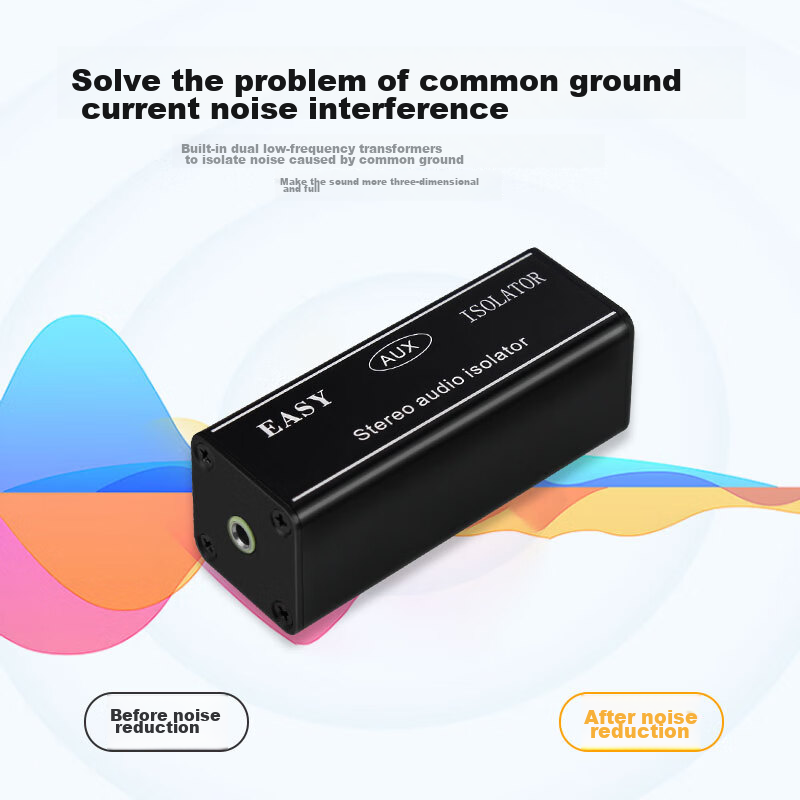

**Product Name:** 3.5 Audio Noise Reduction Isolator

Enjoy pure sound quality, solve power ground noise, audio optimization, stable transmission, wide compatibility, clear sound quality without noise, shielded metal casing, anti-drop and anti-aging

**Features:**

- AUX, ISOLATOR, audio, noise reduction isolator

- Compact design

- Built-in dual low-frequency transformers to effectively filter current noise interference caused by ground interference

- Equipped with 3.5mm audio male and female connectors, no input/output restrictions, supports bi-directional use

- Ideal for use in vehicles to eliminate noise and reduce interference

- Suitable for various devices such as smartphones, tablets, laptops, desktops, amplifiers, and speaker systems

**Connection Diagram:**

- Connection Method 1: Audio source (e.g., computer host) -> Audio Isolator -> Audio Line (e.g., 3.5mm audio cable) -> Audio Processing Host (e.g., mixer)

- Connection Method 2: Audio source (e.g., computer host) -> Audio Isolator -> Audio Line (e.g., RCA/3.5mm audio cable) -> Output Device (e.g., speakers, amplifiers)

**Specifications:**

- Input Interface: 3.5mm AUX female x 1

- Output Interface: 3.5mm AUX female x 1

- Input/Output Impedance: 600Ω/10KΩ (AC impedance)

- Frequency Response: 20Hz-25kHz (±<0.2dB ref. 1kHz)

- Insertion Loss: <0.7dB (ref. 1kHz 1Vrms)

- Insulation Resistance: DC 1000V 100MΩ

- Isolation Voltage: AC 50Hz-60Hz 0V-1500V

- Housing Material: Aluminum alloy

- Color: Matte Black

- Product Dimensions: 65mm x 25mm x 25mm

**Note:** Enjoy clear sound quality, eliminate noise, and experience the compact and durable design of 's 3.5 Audio Noise Reduction Isolator.
