**Product Specifications:**

**Brand:** Thermalright

**Model:** TL-S12R

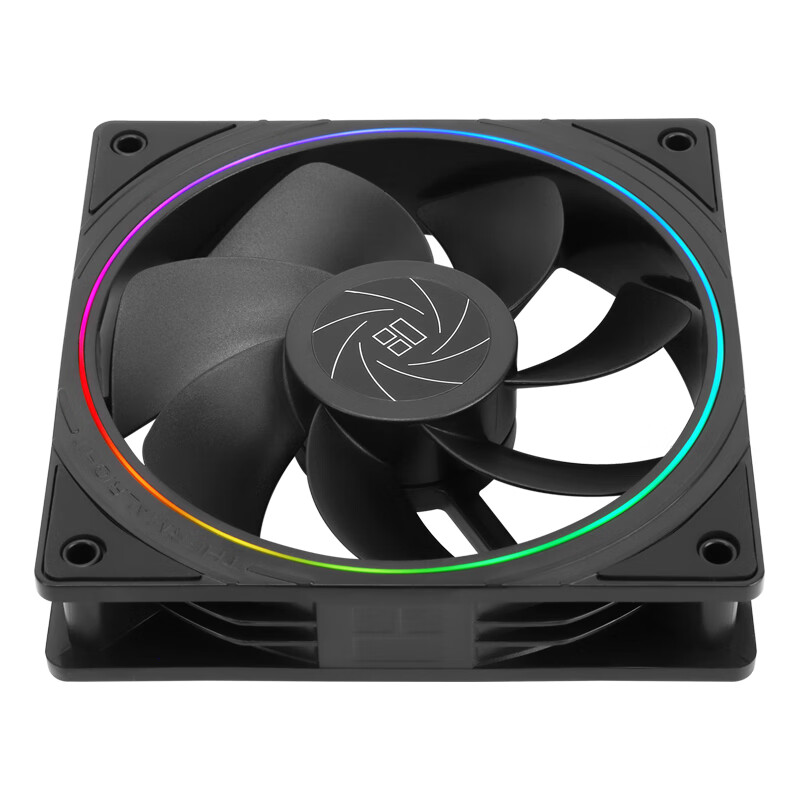

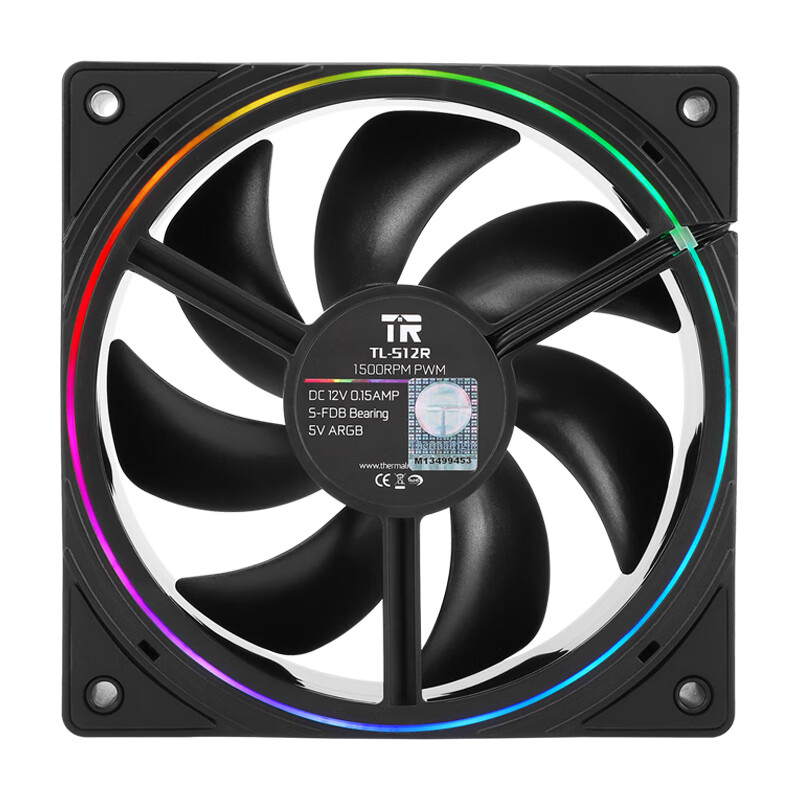

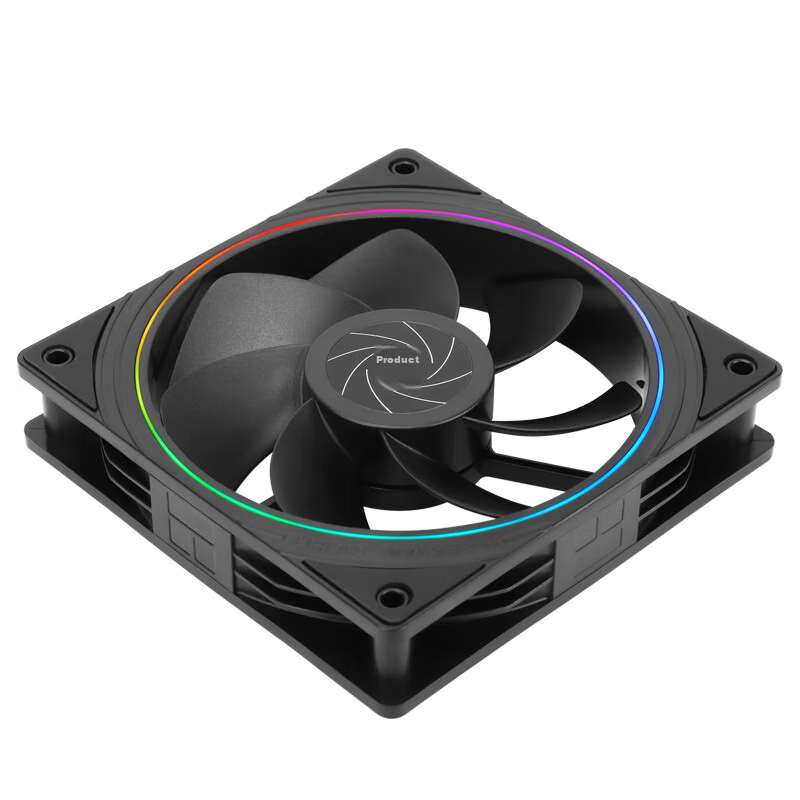

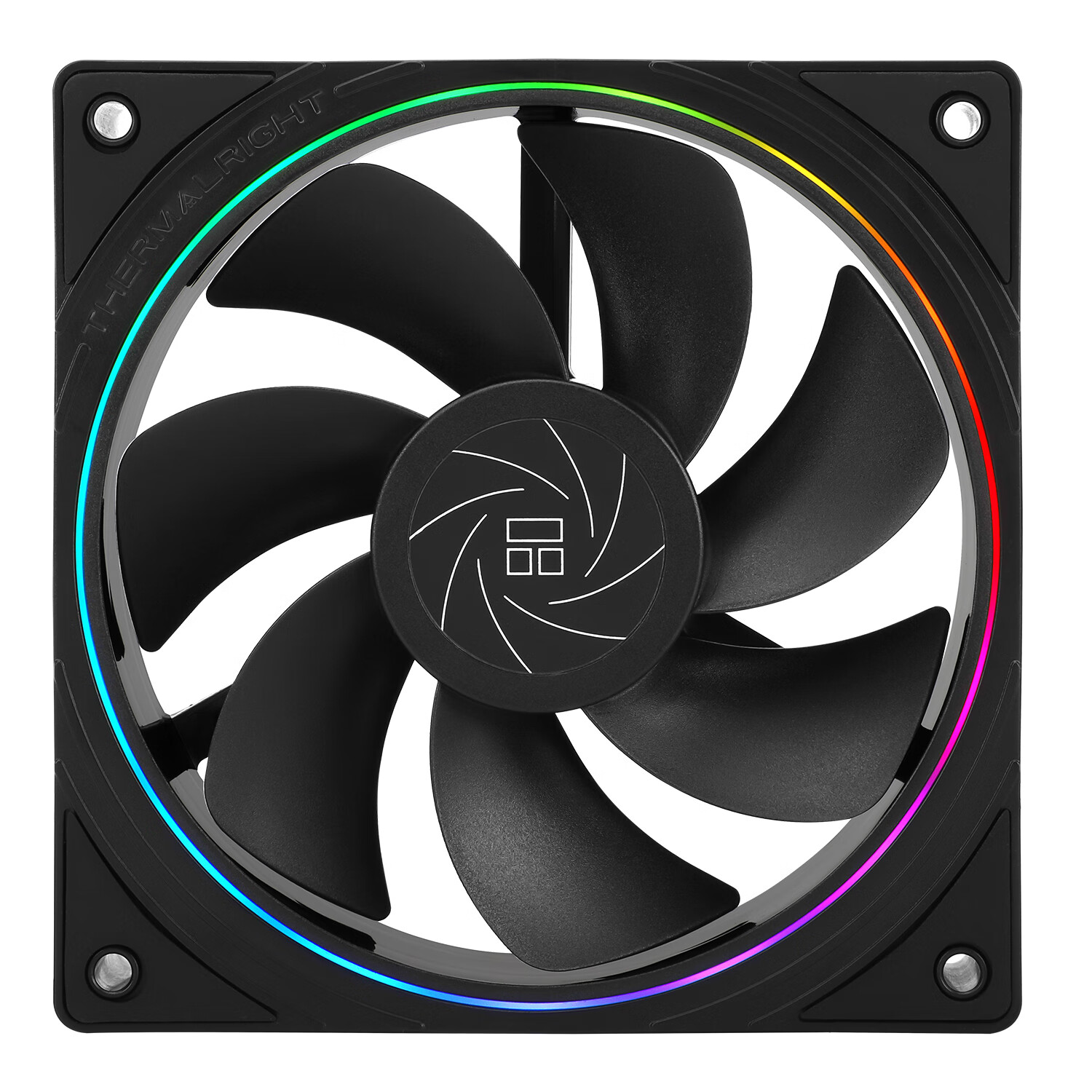

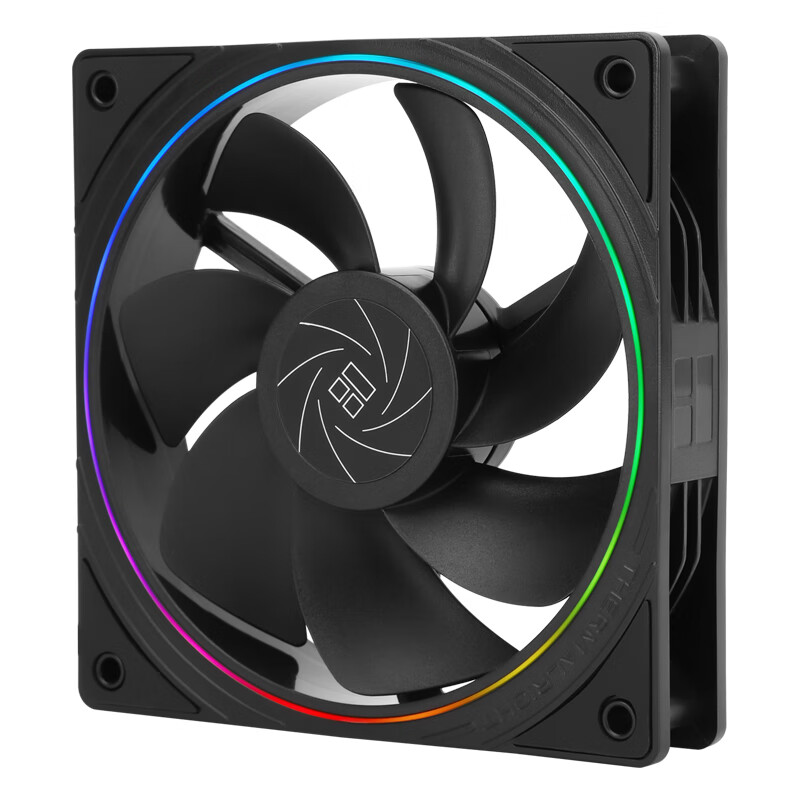

**Description:** 120MM ARGB Dual Halo Reverse Airflow Fan

**Features:**

- Low noise and vibration damping design

- S-FDB bearing with magnetic-assisted mounting

- Reverse airflow design with 23.2 dB noise level

- Fan blade surface airflow and safety speed regulation

- ARGB dual halo lighting with 1500 RPM

- 360° seamless lighting effects with +5V ARGB sync interface

- High-brightness LED with ARGB flowing effects

- Supports ARGB sync and daisy-chain design

**Design:**

- UPT manufacturing process for seamless lighting effects

- 0.6mm thickness for durability and precision

- 47.6 CFM airflow with 7 optimized fan blades

- Balanced design for light and airflow efficiency

- Soft silicone corner pads for shock absorption

**Technical Details:**

- Model: TL-S12R

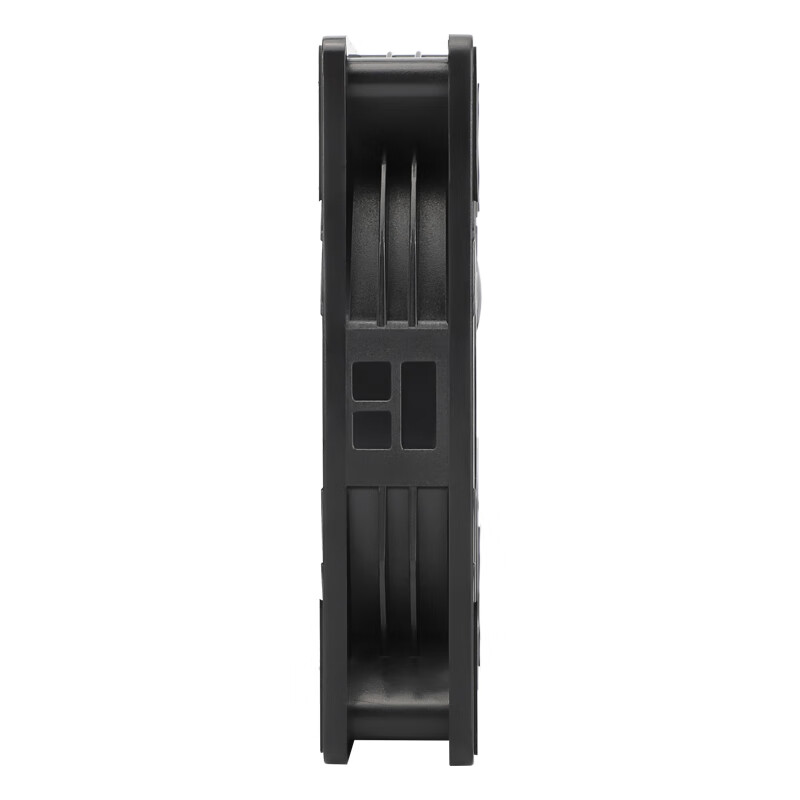

- Size: 120 x 120 x 25mm

- Speed: 1500 RPM ±10%

- Current: 0.15A

- Air Pressure: 1.31mm H2O (MAX)

- Airflow: 47.6 CFM (MAX)

- Noise Level: ≤23.2 dBA

- Interface: 4PIN PWM for fan, +5V 3PIN ARGB for lighting

**Warranty:** Three years

**Note:** Specifications provided by Thermalright laboratory for reference purposes only.
