**Specifications:**

**Brand:** HIKVISION

**Model:** DS-D5ACAM100D

**Image Sensor:** 1/2.8-inch high-quality 4K CMOS sensor

**Effective Pixels:** 8MP

**Video Output:** MJPG: 3840*2160@30/2560*1440@30/1920*1080@30/1600*896@30/1280*720@30/1024*576@30/960*540@30/800*600@30/800*448@30/720*576@30/720*480@30/640*480@30/640*360@30/480*270@30/352*288@30/320*240@30, H264: 3840*2160@30/2560*1440@30/1920*1080@30/1600*896@30/1280*720@30/1024*576@30/800*600@30/800*448@30/720*576@30/720*480@30/640*480@30/640*360@30/480*270@30/352*288@30/320*240@30, YUY2: 1920*1080@30/1280*720@30/1024*576@30/800*600@30/800*448@30, NV12: 1920*1080@15/1280*720@30/1024*576@30/800*600@30/800*448@30

**Camera/Lens Parameters:**

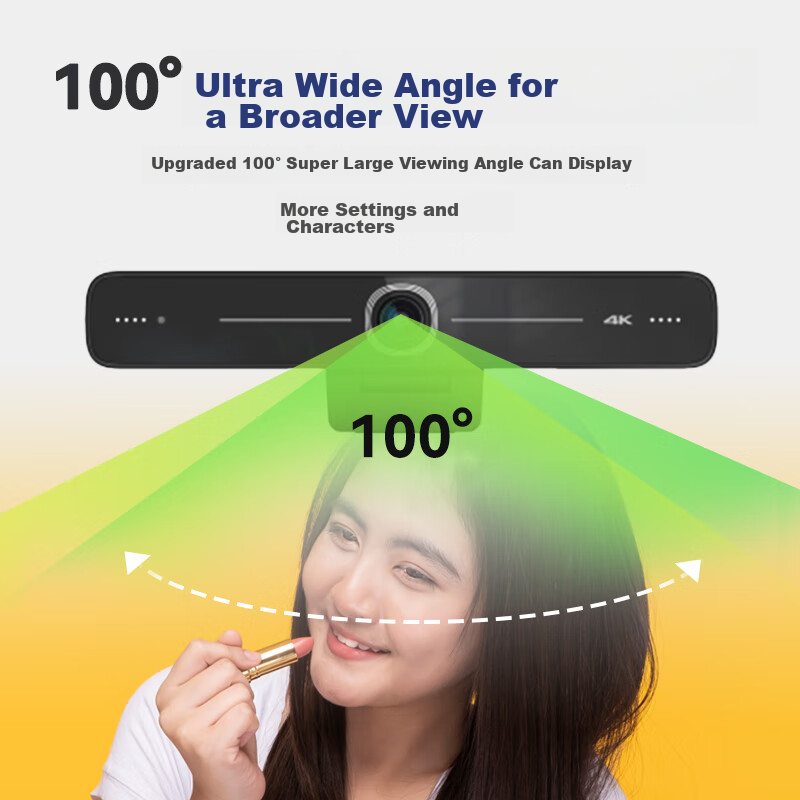

- **View Angle:** 115°(D)/100°(H)/56°(V)

- **Focal Length:** f=2.26mm

- **Aperture:** F1.8±5%

- **Digital Zoom:** 10x

- **Minimum Illumination:** 0.1Lux(F1.8, AGC ON)

- **Focus:** Manual

- **White Balance:** Auto/Manual

- **Exposure:** Auto/Manual

- **Backlight Compensation:** On/Off

- **Signal-to-Noise Ratio:** ≥50dB

**Video Output Interface:** 1 x USB3.0 interface: Type B, supports audio output

**Interface Parameters:**

- **Audio Input:** 2 x built-in MIC pickups

**Supported Operating Systems:** Windows 7 (supports up to 1080p), Windows 8.1, Windows 10, macOS 10.10 or higher, Linux (UVC support required), Android 8.1 or higher

**Video Compression Formats:** YUY2, NV12, MJPG, H264

**USB Audio:** Supported

**USB Features:** USB communication protocols: UVC, UAC, PTZ control supported

**USB Hardware Requirements:** Intel Core 2 Duo processor or higher, 2GB RAM or higher, USB 2.0 interface (USB 3.0 required for 4K)

**Power Supply:** 5V

**Power Consumption:** 5W (max)

**Net Weight:** 0.3kg

**Package Dimensions:** 260mm x 95mm x 130mm

**Product Dimensions:** 180mm x 42.5mm x 46.3mm

**General Parameters:**

- **Operating Temperature:** -10°C to 50°C

- **Operating Humidity:** 20% to 80% RH

- **Storage Temperature:** -10°C to 60°C

- **Storage Humidity:** 20% to 90% RH

**Features:**

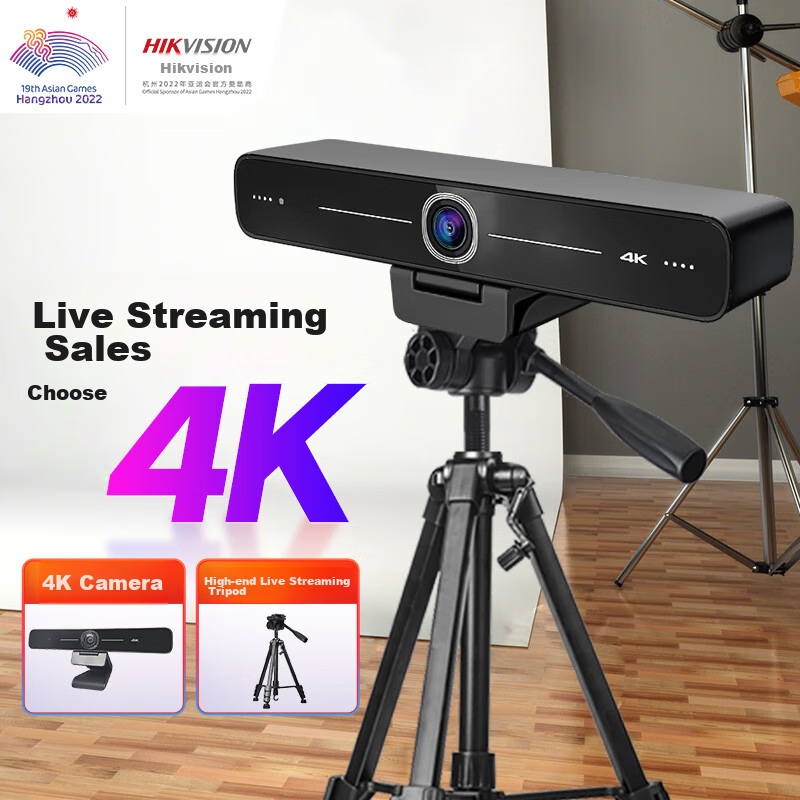

4K Ultra HD live streaming camera

Built-in dual omnidirectional microphones

8MP sensor for true color reproduction

Omnidirectional noise reduction microphone pickup up to 6 meters

10x electronic zoom

100° wide-angle view

AI automatic face tracking

Plug and play USB connectivity

Green screen effect for background switching

High signal-to-noise ratio with low noise CMOS sensor

Automatic face tracking with AI

Wide compatibility with various live streaming platforms and software applications

Ideal for live streaming, e-commerce, smart TV, video calls, banking, security monitoring, airports, and meetings
