**Product Specifications:**

**Brand:** HAILE

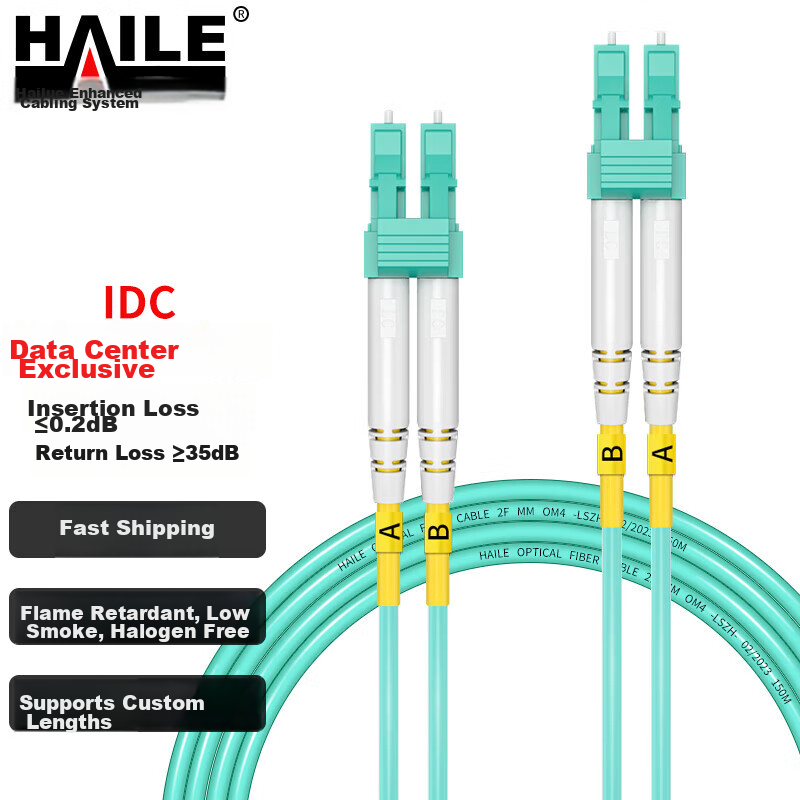

**Name:** 10 Gigabit OM4 Multimode Fiber Optic Patch Cord

**Product Type:** Multimode Duplex LC-LC

**Cable Diameter:** 2.0mm (default)

**Length:** 1m - 100m optional

**Connector:** High-precision ceramic connector

**Insertion/Withdrawal Cycles:** ≥1000 times

**Insertion Loss:** ≤0.2dB

**Return Loss:** ≥35dB

**Tensile Strength:** ≥75N

**Repeatability:** ≤0.1dB

**Interchangeability:** ≤0.18dB

**Operating Temperature:** -40℃ to +80℃

**Storage Temperature:** -40℃ to +80℃

**Vibration Test:** <0.1dB (5-50HZ, 1.5SM amplitude)

**Standard:** BELLCORETA-NWT-001221/001209

**Features:**

High-speed 10 Gigabit multimode duplex fiber optic patch cord

Durable and reliable, easy to fusion splice with low loss

Stable transmission speed for 10 Gigabit networks

Low insertion loss, using new materials and high-precision grinding

Upgraded dust-proof sheath for convenient and quick insertion and withdrawal

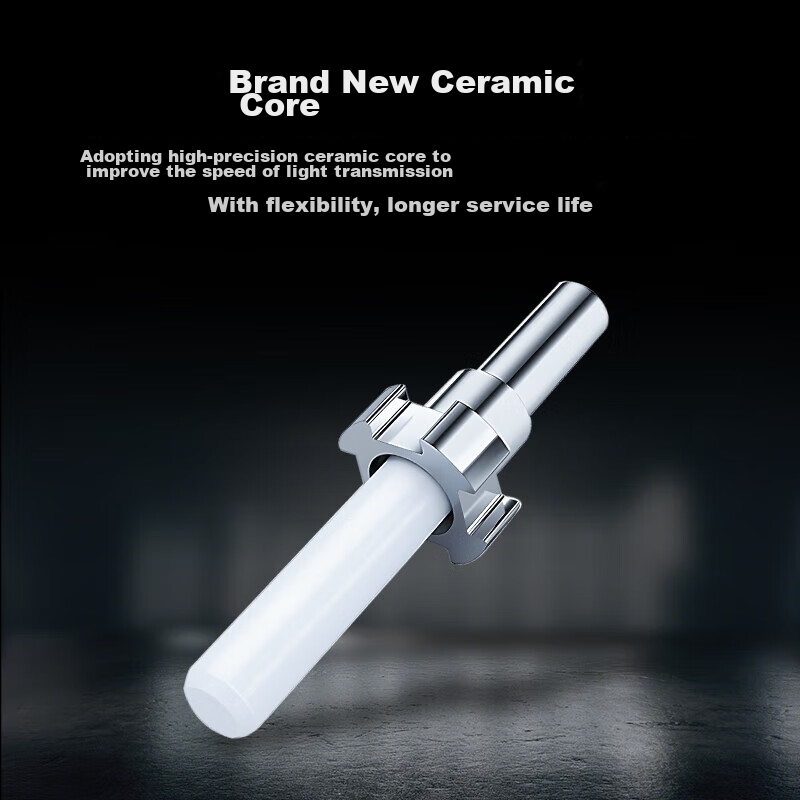

High-quality ceramic connector for improved speed, flexibility, and longer lifespan

Advanced grinding technology for precise fiber alignment and smooth surface

LSZH halogen-free outer sheath for strong flame retardancy and environmental protection

Widely compatible with fiber optic communication systems, data transmission, fiber CATV, fiber-to-the-home, LAN, optical testing equipment, fiber sensors, fiber communication rooms, fiber modules, fiber connection transmission equipment, and fiber switches.
