**Product Specifications:**

**Brand:** FANXIANG

**Model:** S690 Solid State Drive

**Speed:** Up to 5000MB/s

**Capacity Options:** 500GB, 1TB, 2TB

**Controller:** Lianyun Controller with ARMCortex-M3 core

**Flash Memory:** TLC NAND flash memory

**Cache:** HMB+SLC Cache for enhanced performance

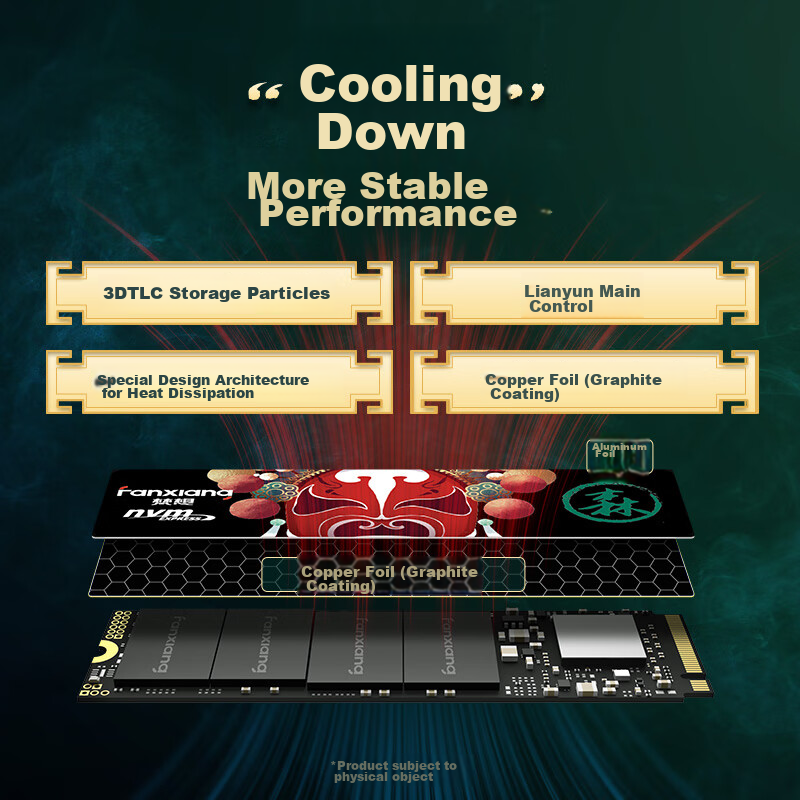

**Cooling:** Copper and aluminum foil cooling design

**Compatibility:** Compatible with desktops, all-in-one PCs, laptops, and home servers

**Warranty:** 5 years limited warranty

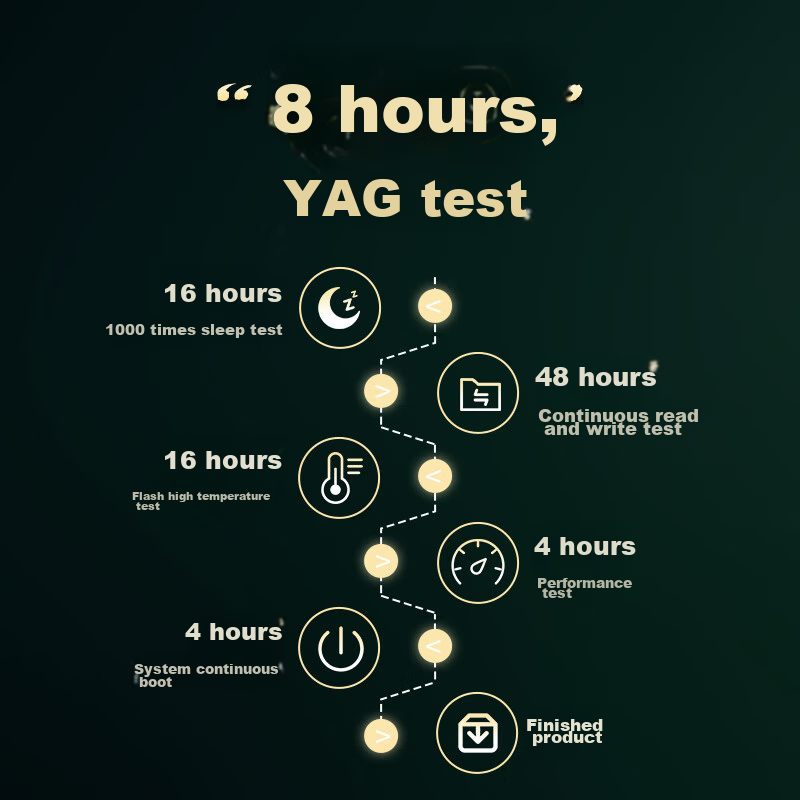

**Testing:** Underwent rigorous testing including 88 hours of durability testing, 1000 cycles of sleep testing, and continuous read/write testing

**Interface:** M.2 2280 (NVMe protocol, PCIe Gen4)

**Operating Temperature:** -40°C to 85°C

**Storage Temperature:** -40°C to 85°C

**Weight:** 8g

**Dimensions:** 80mm (L) x 22mm (W) x 2.4mm (H)

**System Compatibility:** Windows 7/8/10/11, Mac OS 10.9 and later

**TBW (Total Bytes Written):** 350TBW for 500GB, 700TBW for 1TB, 1400TBW for 2TB

**Sequential Read Speed:** Up to 5000MB/s

**Sequential Write Speed:** Up to 4500MB/s

**Test System Configuration:** Intel Core i5-12400F processor, FANXIANG DDR4 3200MHz 8GBx2 memory, Windows 11 Professional, MSI MAG B660M MORTAR motherboard

*Note: Actual performance may vary due to device differences. Product specifications are subject to change, please refer to the actual product for details.*
