**Product Specifications:**

**Brand:** BOYANG

**Product Name:** SMA Female to SMA Female Adapter

**Impedance:** 50Ω

**Operating Temperature:** -55°C to +125°C

**Model Number:** BY-SMA-KK

**Relative Humidity:** ≤95% (at 40°C)

**VSWR:** ≤1.25

**Frequency Range:** 0-6GHz

**Connector Body:** Brass with Nickel Plating

**Mechanical Durability:** ≥500 cycles

**Inner Conductor:** Beryllium Copper with Hard Gold Plating

**Quantity:** 1 piece per pack

**Features:**

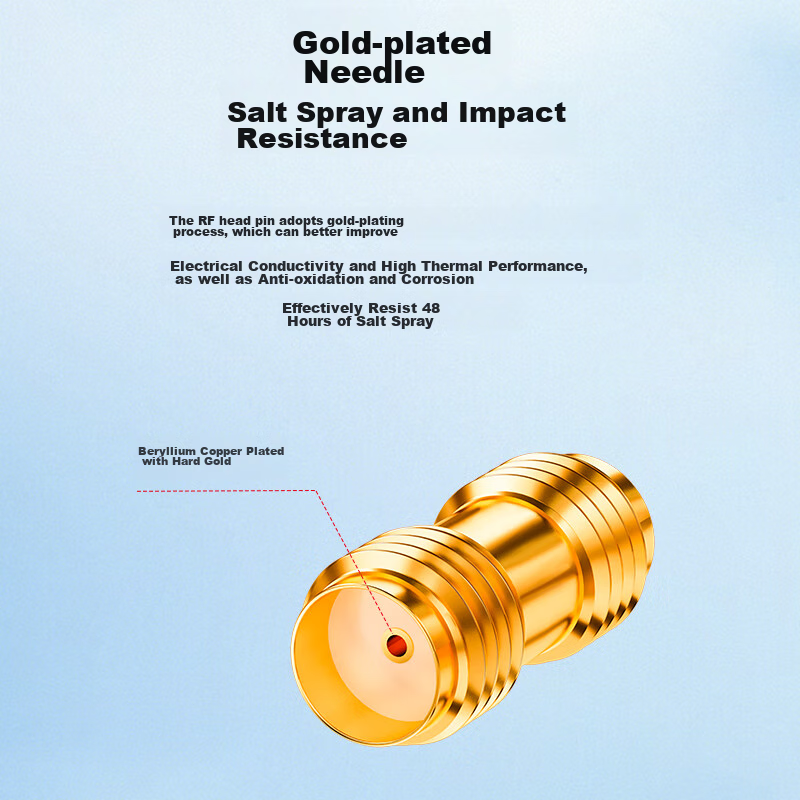

Gold-plated pins for enhanced electrical conductivity and thermal performance

Salt spray and impact resistance for durability

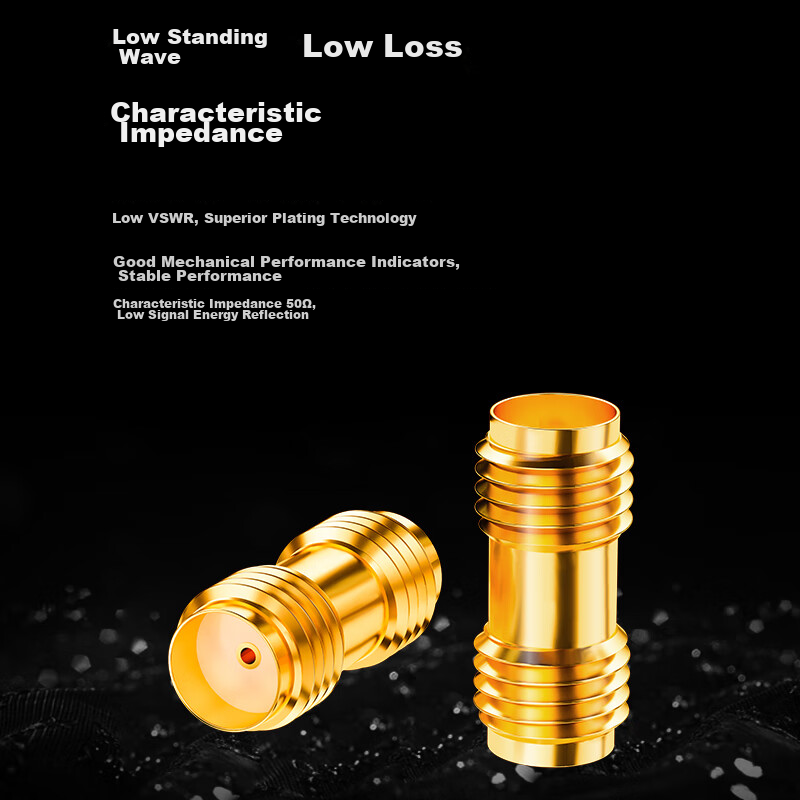

Low VSWR, low loss, and stable impedance for optimal signal transmission

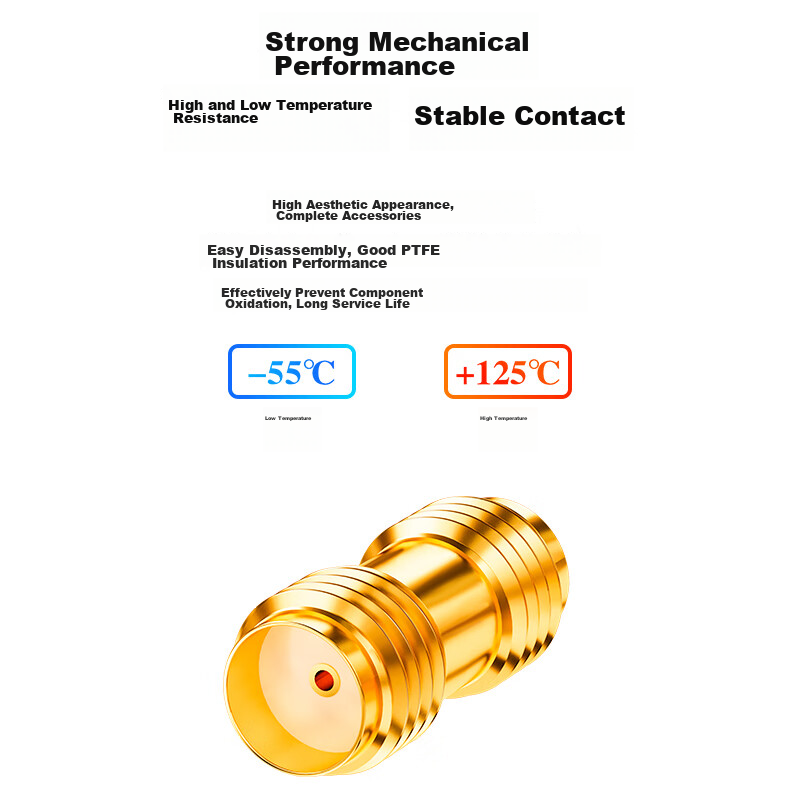

High mechanical strength, stable contact, and attractive appearance

Complete accessories for easy installation and disassembly

PTFE insulation for long-term use and prevention of oxidation

Wide temperature range: -55°C to +125°C

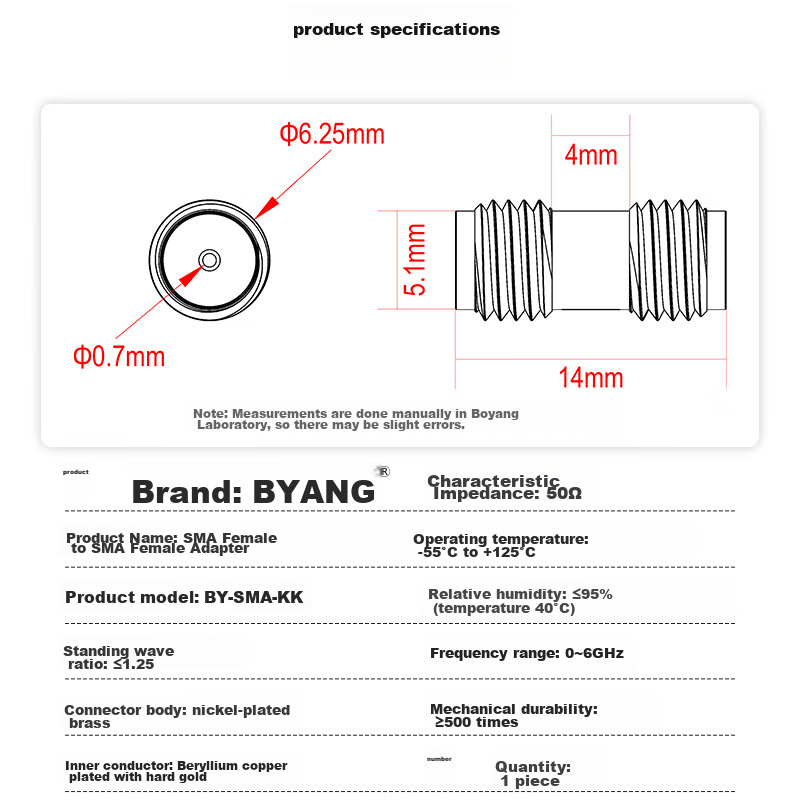

**Product Parameters:**

Diameter: Φ6.25mm

Length: 4mm

Width: 5.1mm

Pin Diameter: Φ0.7mm

Height: 14mm

**Note:** Laboratory measurements may have slight errors.

**Applications:**

Widely used in communication equipment and radio instruments

Ideal for connecting cables in RF circuits to ensure clear and stable voice transmission

**Quality Assurance:** BOYANG ensures high-quality network connectors for reliable performance.

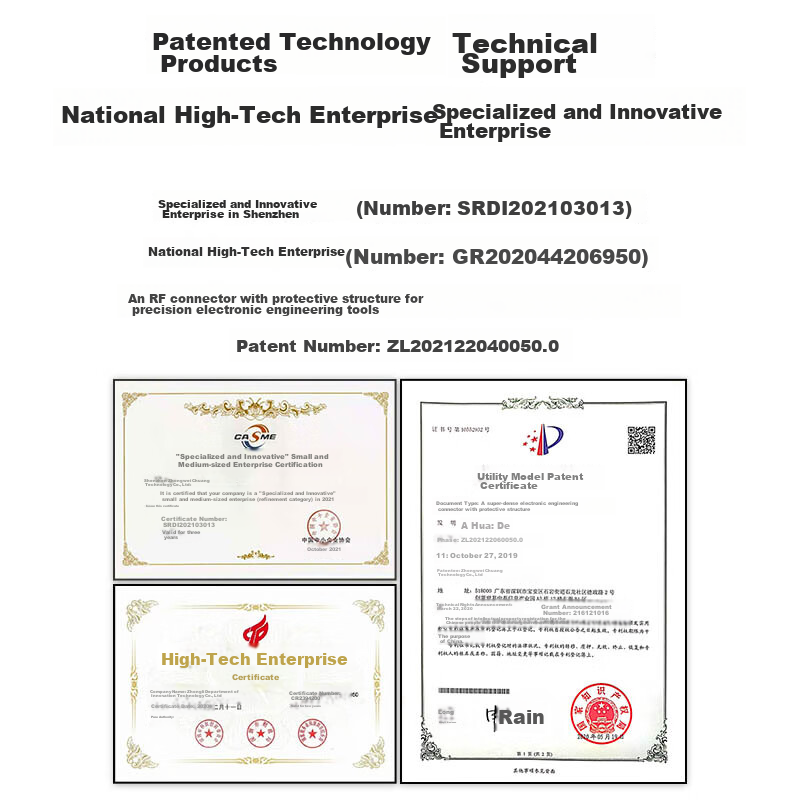

**Certifications:**

National High-tech Enterprise (GR202044206950)

Shenzhen Specialized and New Enterprise (SRDI202103013)

Utility Model Patent Certificate (ZL202122040050.0)

"Specialized and New" Small and Medium-sized Enterprise Recognition Certificate (SRDI202103013)

**Patents:**

Patent Number: ZL202122040050.0

Patent Type: Utility Model

Issued to: Shenzhen Zhongwei Chuang Technology Co., Ltd.

**Additional Information:**

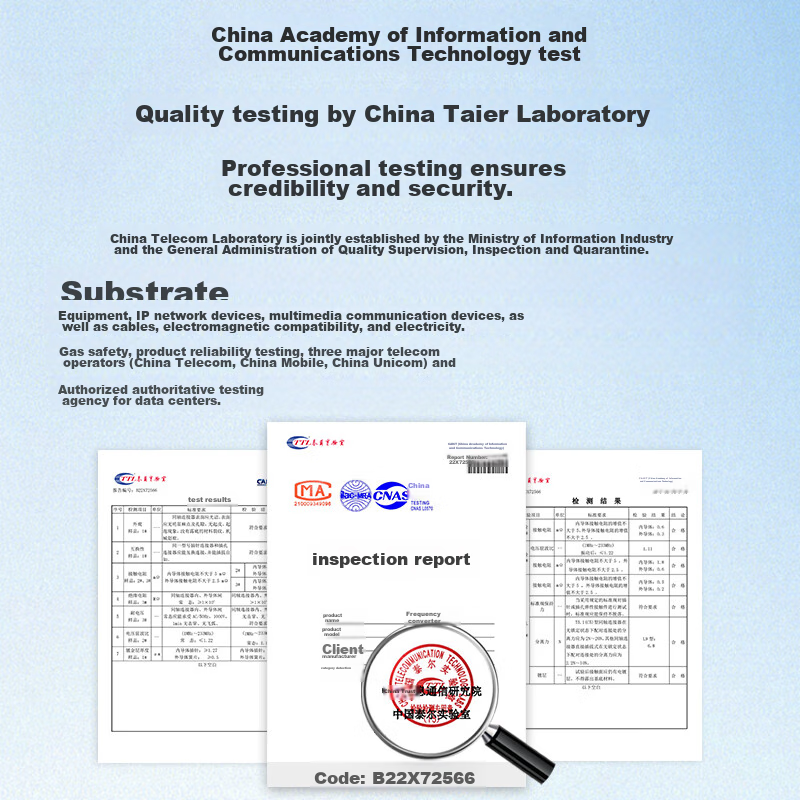

CAICT China Academy of Information and Communications Technology Testing Report Number: 822X72566

China Quality Certification Center (CNAS) Testing Report: XAY.XTK.

Laboratory Accreditation: China Quality Certification Center (CNAS)

Testing Facility: China Quality Certification Center (CNAS)

Authorized by: Ministry of Industry and Information Technology and General Administration of Quality Supervision, Inspection and Quarantine of China

**Disclaimer:** Hand measurements in the laboratory may have slight discrepancies.
